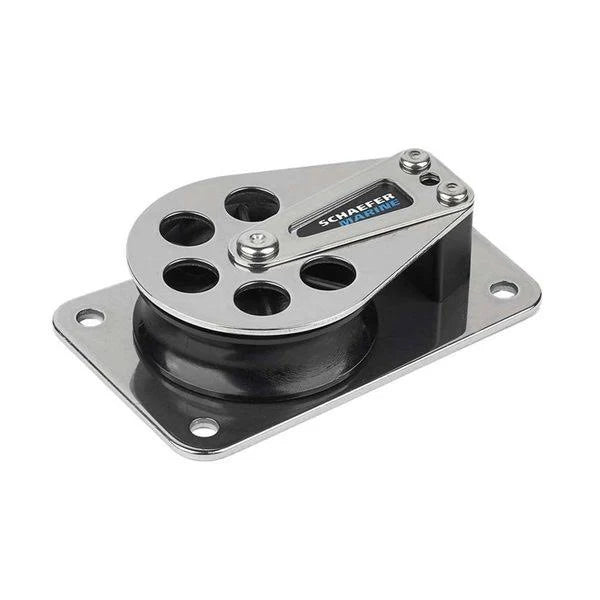

Cheek Block E877
Sale price
$17.90
Regular price $83.18
Skip to product information
Schaefer flat base cheek blocks are ideal for use on spars or the deck to lead sheets, halyards, reefing gear and any control line requiring a smooth lead. Features: Flat base distributes loads to a larger surface area than other designs that place loads on the mounting bolts only Strong stainless steel base and cheek Durable Delrin sheave Use 7 Series cheek block pad 55-61 on curved surfaces. Fits spar diameters 3"-7"- Sold Separately Specifications: Maximum line size: 1/2" Safe working load: 2250lbs. (1020kg) Dimensions: 4-3/8" (111mm) L x 2-3/4" (70mm) W x 1" (25mm) H Hole centers: 3-5/8"(92mm) Sheave diameter: 2-3/8" (60mm) Required Fasteners: 4 x 1/4"
